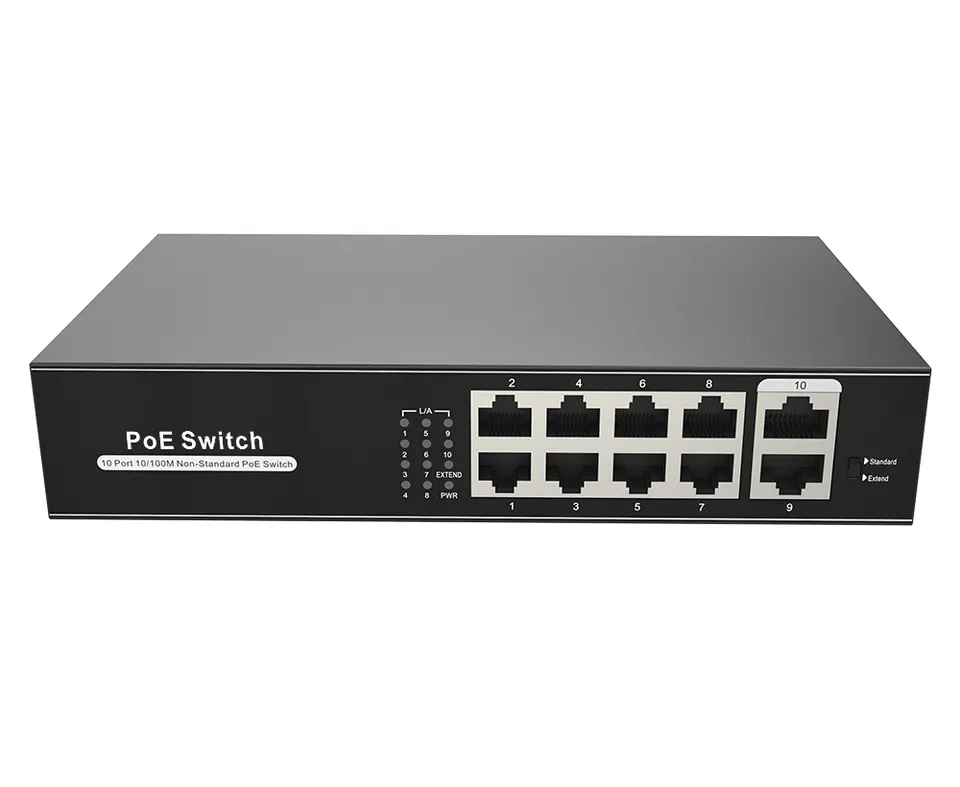

Model
|
H2108PL
|
||
|
Interface Characteristics
|
|||
|
Fixed Port
|
8*10/100Base-TX PoE ports (Data/Power)
2*10/100Base-TX uplink RJ45 Ports (Data) |
||
|
Ethernet Port
|
10/100Base-T(X) auto-sensing, full/half duplex MDI/MDI-X self-adaption
|
||
|
Twisted Pair Transmission
|
10BASE-TX : Cat5 or later UTP(≤250 meter)
100BASE-TX: Cat5 or later UTP(≤100 meter) |
||
|
Functional Switch
|
Port 1-8support port VLAN and 10M/250m transmission
|
||
|
Note: When the switch status changes, the PoE switch must be restarted for the switch function to take effect.
|
|||
|
Chip Parameter
|
|||
|
Network Protocol
|
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T
IEEE802.3u 100Base-TX, IEEE802.3x |
||
|
Forwarding Mode
|
Store and Forward(Full Wire Speed)
|
||
|
MAC
|
2K
|
||
|
Buffer Memory
|
1.25M
|
||
|
LED Indicator
|
Power: PWR (Green), Network:L/A (Green), Function switch: EXTEND (Green)
|
||
|
PoE &Power Supply
|
|||
|
Total PWR / Input Voltage
|

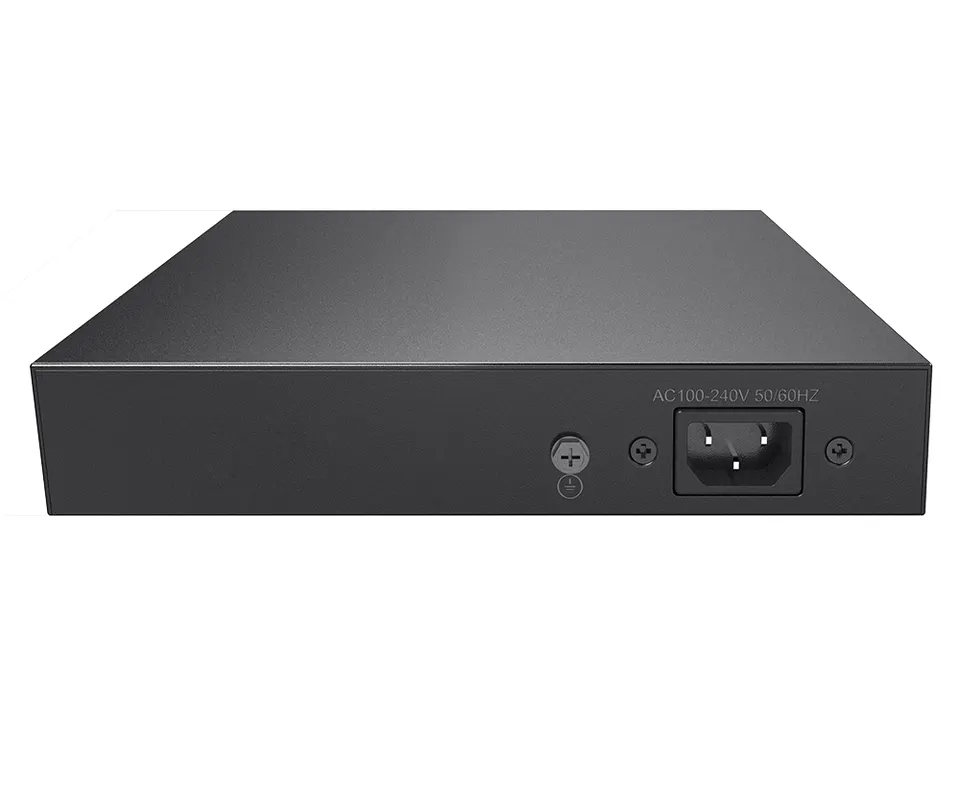

120W (AC100-240V)
|
||
|
Power Consumption
|
Standby<5W, Full load<120W
|
||
|
Physical Parameter
|
|||
|
Operation TEMP / Humidity
|
-20~+55°C;5%~90% RH Non condensing
|
||
|
Storage TEMP / Humidity
|
-40~+75°C;5%~95% RH Non condensing
|
||
|
Dimension (L*W*H)
|
195*130*40mm
|
||
|
Net /Gross Weight
|
<0.8kg / <1.2kg
|
||
|
Installation
|
Desktop, wall mounted,Rack mounted
|
||
|
Certification & Warranty
|
|||
|
Lightning Protection
|
4KV 8/20us; Protection level: IP30
|
||
|
Certification
|
CCC;CE mark, commercial; CE/LVD EN60950;FCC Part 15 Class B; RoHS
|
||
|
Warranty
|
1 year, lifelong maintenance.
|
||
